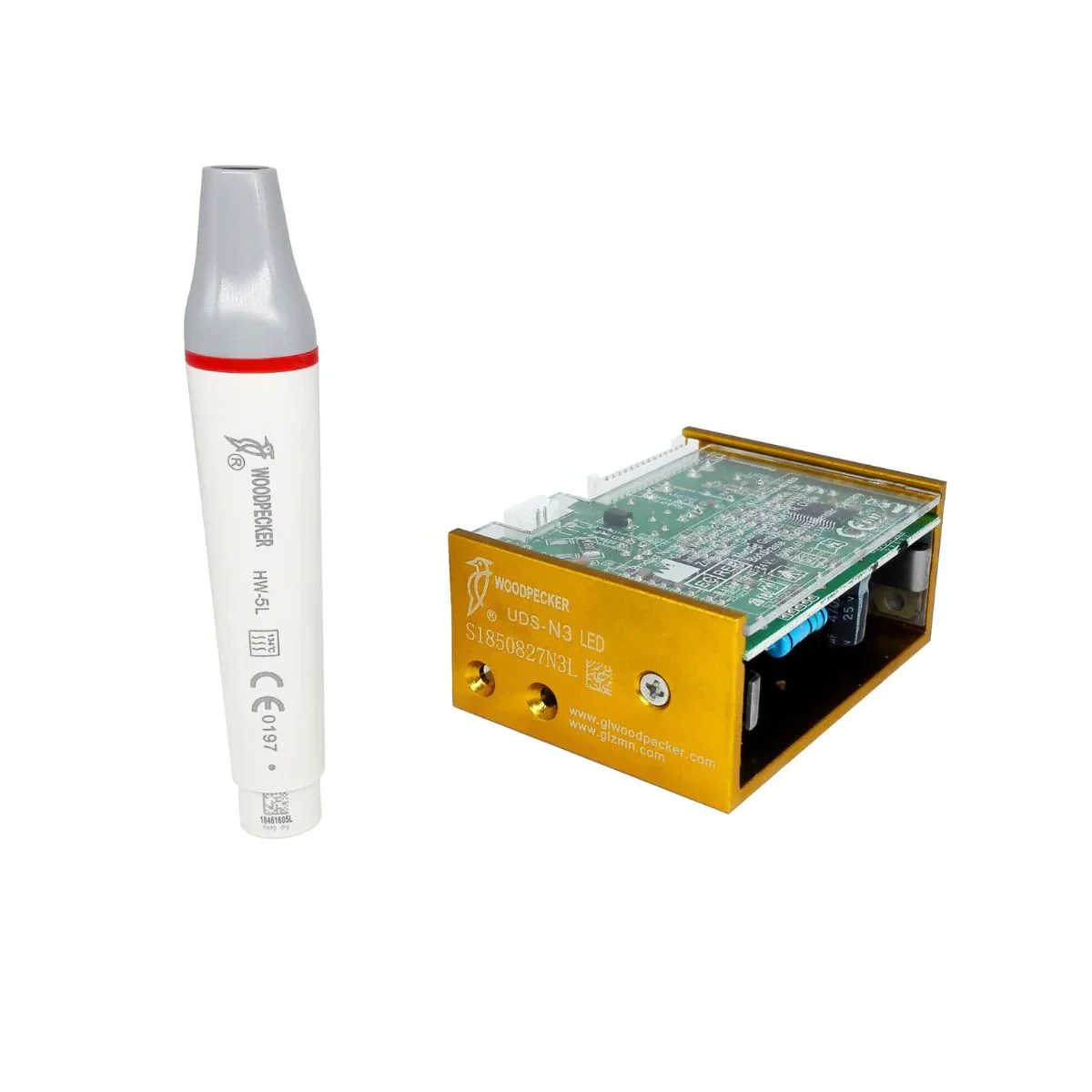

The scaler is composed of an electro circuit, waterway, and ultrasonic transducer. UDS-N3 is used for dental calculus elimination and root canal treatment. Detachable handpiece autoclavable. Automatic frequency tracking. Scaling endo function. Specifications: - Power source input: 220 - 240V, 50Hz/60Hz, 150mA. - Main unit input: 24V - 1.3A. - Output primary tip vibration excursion: ≤100um. - Output half-excursion force: ＜2N. - Output tip vibration frequency: 28kHz ± 3kHz. - Output power: 3W to 20W - Main unit fuse: T 1.6AL 250V - Power source fuse: T0.5AL 250V - Water pressure: 0.1bar to 5bar (0.01MPa to 0.5MPa) - Operating mode: Continuous operation - Type of protection against electric shock: Class II - Degree of protection against electric shock: Type BF applied part - The applied part of the equipment is the handpiece and tip. - Degree of protection against harmful ingress of water: Ordinary equipment (IPX0). - Protection degree against water (used on the foot switch): IPX1. - Degree of application safety in the presence of a Flammable Anesthetic Mixture with air or Oxygen Nitrous Oxide: Equipment not suitable for being used in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide.
Description
The scaler is composed of an electro circuit, waterway, and ultrasonic transducer. UDS-N3 is used for dental calculus elimination and root canal treatment. Detachable handpiece autoclavable. Automatic frequency tracking. Scaling endo function. Specifications: - Power source input: 220 - 240V, 50Hz/60Hz, 150mA. - Main unit input: 24V - 1.3A. - Output primary tip vibration excursion: ≤100um. - Output half-excursion force: ＜2N. - Output tip vibration frequency: 28kHz ± 3kHz. - Output power: 3W to 20W - Main unit fuse: T 1.6AL 250V - Power source fuse: T0.5AL 250V - Water pressure: 0.1bar to 5bar (0.01MPa to 0.5MPa) - Operating mode: Continuous operation - Type of protection against electric shock: Class II - Degree of protection against electric shock: Type BF applied part - The applied part of the equipment is the handpiece and tip. - Degree of protection against harmful ingress of water: Ordinary equipment (IPX0). - Protection degree against water (used on the foot switch): IPX1. - Degree of application safety in the presence of a Flammable Anesthetic Mixture with air or Oxygen Nitrous Oxide: Equipment not suitable for being used in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide.
